Issues that should be paid attention to when installing bag dust collector in stone mining and crushing

    In the stone mining and crushing industry, in order to reduce the impact of dust on the environment and improve the working environment of workers, many companies choose to install bag dust collectors. Issues that need attention are as follows:

1.Preparation.

    Before purchasing a bag dust collector, you need to understand the dust components, particle size, production concentration, air volume, emission concentration and other indicators. The explosion-proof level and protection level of the site also need to be considered.

2.Selection of bag dust collector.

    According to the actual situation, select the appropriate bag dust collector model. Including: the processing capacity of the bag dust collector, the area of ​​the filter bag, the material and thickness of the shell and the material of the frame, the wind pressure of the fan and the power of the motor, etc.

3.Installation and debugging of bag dust collector.

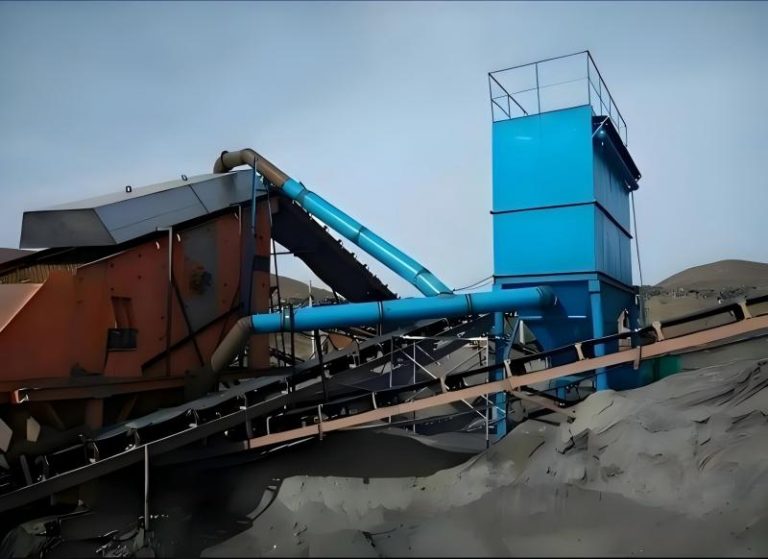

    The bag dust collector should be installed as close as possible to the crusher. Minimize pipe length and resistance. Based on design calculations, select the appropriate pipe diameter, material, and thickness. During the pipeline installation process, you should ensure that the pipeline is firm and airtight. During the debugging process, focus on checking whether the filtration effect, emission concentration, equipment vibration and other indicators meet the design requirements. If an exception occurs, handle it promptly.

4.Equipment operation and maintenance of bag dust collector.

    (1) Before putting the bag dust collector into operation, operating procedures and maintenance plans need to be formulated.

    (2) Operators should be trained and familiar with equipment performance and operating procedures.

    (3) During the operation of the equipment, regular inspections must be carried out. Regularly check the operating status of the equipment, such as whether vibration, temperature, pressure and other indicators are normal.

    (4) At the same time, maintenance work such as cleaning and replacement of filter bags should be carried out regularly to ensure the normal operation and service life of the dust collector.
