Product Details

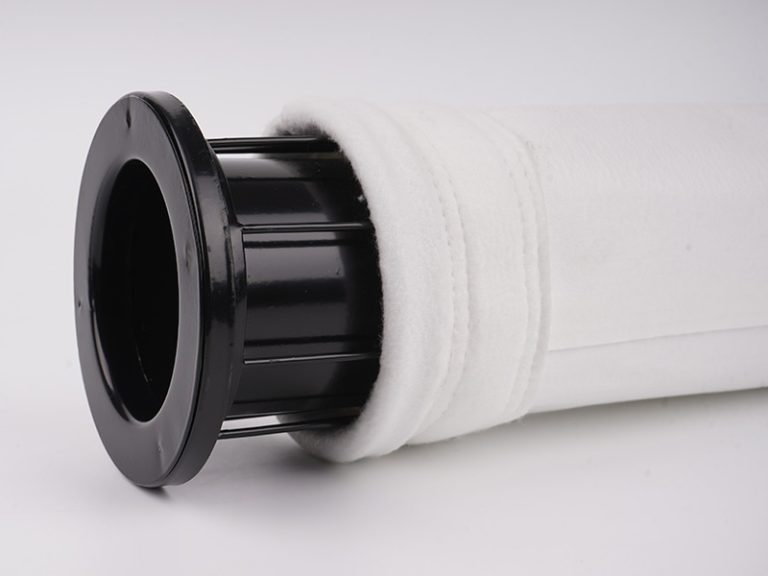

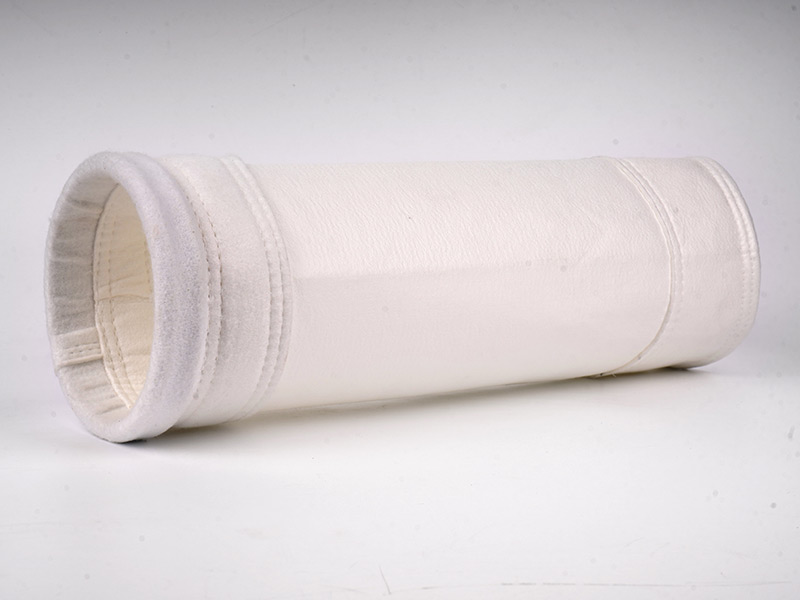

Polyester needle felt filter bag
Polyester needle felt bag
1、Performance introduction
|
Item | Parameter |
| 1 | name | Polyester needle felt bag |
| 2 | Material | Polyester fiber/polyester staple fiber base fabric or polyester filament base fabric |
| 3 | Gram weight (g/m2) | 450-600 |
| 4 | Air permeability (m³/(m²·min) | 6-16 |
| 5 | Warp tension (N/5×20cm) | ＞1100 |
| 6 | Weft tension (N/5×20cm) | ＞1300 |
| 7 | Warp elongation (100%) | ＜35 |
| 8 | Weft elongation (100%) | ＜55 |
| 9 | Operating temperature （℃） | ＜130 |
| 10 | Post-processing method | Singed, calendered or Teflon coated, PTFE coated, waterproof |
| 11 | Main application scope | Cement factory, stone processing, coal mining, workshop ventilation |
2.Characteristics of polyester needle felt filter bags
(1) High filtration efficiency: The initial filtration efficiency can reach 99%. After the initial layer of dust is formed, the efficiency stabilizes at more than 99.9%. It is especially suitable for the collection of fine dust (such as PM2.5).
(2) Good temperature resistance and corrosion resistance. The filter bag can operate continuously at 120°C and remains stable in weak acid and alkali environments.
(3) High porosity: The porosity can reach 70%-80%, ensuring smooth passage of air while reducing pressure loss and energy consumption.
