Anti-static polyester needle felt filter bag
Tag recommendation：
Phone：+8618633676702
E-mail：[email protected]
Product Details

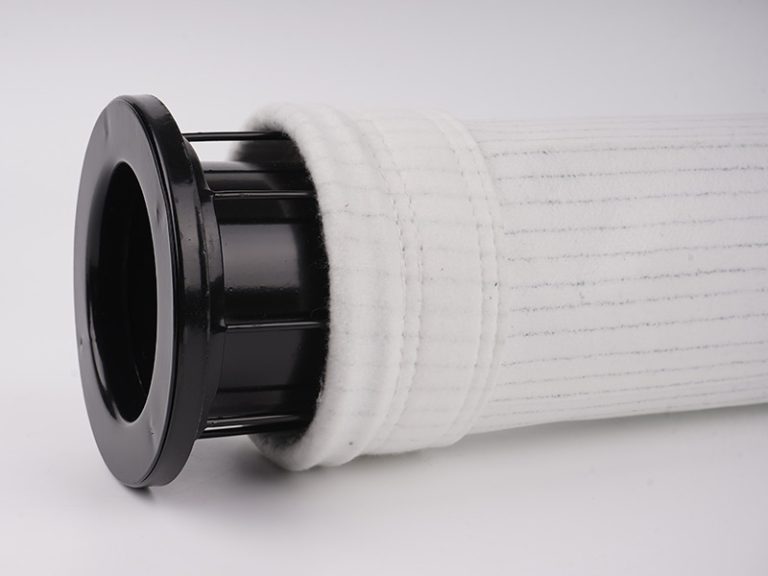

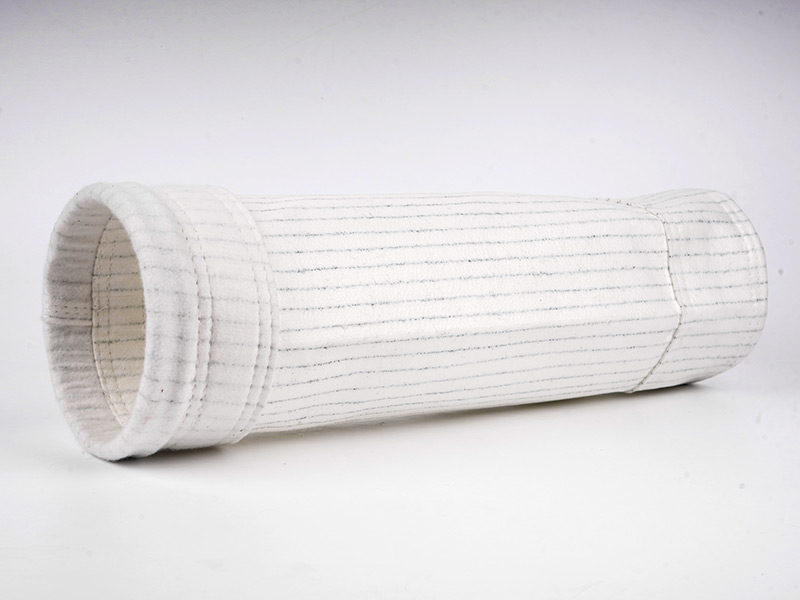

Anti-static polyester needle felt filter bag
1、Performance introduction
| Serial number | Item | Parameter |
| 1 | name | Anti-static polyester needle felt filter bag |
| 2 | Material | Polyester fiber/polyester conductive base fabric |
| 3 | Gram weight (g/m2) | 450-600 |
| 4 | Air permeability (m³/(m²·min) | 6-16 |
| 5 | Warp tension (N/5×20cm) | ＞800 |
| 6 | Weft tension (N/5×20cm) | ＞900 |
| 7 | Warp elongation (100%) | ＜35 |
| 8 | Weft elongation (100%) | ＜55 |
| 9 | Operating temperature （℃） | ＜130 |
| 10 | Post-processing method | Singed, calendered or Teflon coated, PTFE coated, waterproof |
| 11 | Main application scope | Grain processing, cement industry, chemical industry, thermal power generation, etc. |
2.Characteristics of anti-static polyester needle felt filter bags
(1) Using stainless steel conductive fiber or copper-infiltrated complex conductive yarn, the charge conduction speed is ≤0.1 seconds (ordinary cloth bags require more than 300 seconds). Under the conditions of dust concentration 20g/m³ and wind speed 1.2m/s, the surface voltage is stable.
(2) The porosity reaches more than 70%, the initial filtration efficiency for 1 μm particles is ≥99%, and the efficiency can reach 99.9% after forming the first layer of dust. In many working conditions, the emission concentration is stable at 8-12mg/m³, which is better than ordinary cloth bags.
(3) Widely used in coal mill dust collection systems in cement plants and flour mills
